Time Sert BIG-SERT 5761D 7/16-14 KIT w/1.000 /tap guide & Sealer

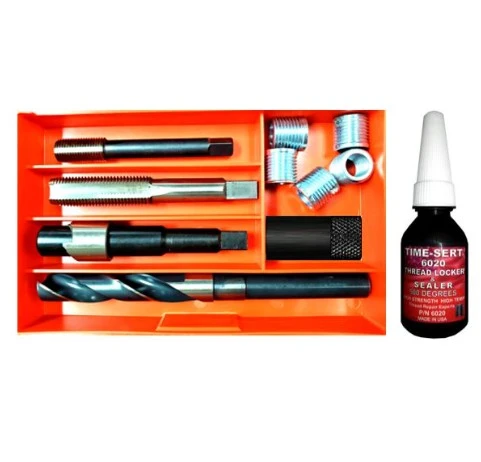

Time Sert 5761D Big Sert kit, made by Time Sert in the USA. Big Sert means it's "over-sized" for use when a Helicoil or a competitive brand has failed. The 5761D is commonly used Harleys after a Heli Coil has made the hole bigger. It has a larger outside diameter but still accepts the original size 7/16-14 head bolts/stud. If doing a first time repair the oversize kit is not needed, we recommend using the Time Sert 0761E. *note stock image shows shorter inserts, 1" are included

Core Drill Bit (Reamer) 37/64"

Counterbore (with pilot assembly) The counter-bore tool is needed to allow the inserts to sit flush as to not interfere with the cylinder head.

Tap - 7/16 Big Sert Tap Guide pn 57655 - for guiding the tooling straight.

Installation Driver - for installing insert by cold rolling threads and expanding the bottom locking it into place.

Includes 5 Inserts Length 1.00" pn 57615 - Big Sert inserts have a larger O.D. compared to regular Time Sert inserts.

Time Sert Thread Locker - Permanent high temperature, oil resistant red thread locker
